IBLS Track Standard
|Hornby produced.Generally regarded as the smallest scale for live steam.|
|Popularly used for the small scale live steam.|
|No. 1||1:32||45 mm|
|Popularly used for the small scale live steam. Corresponds to NEM 1 or NMRA #I.|
2 1⁄2 in
|The smallest scale able to pull real passengers. Was one of the first popular live steam gauges, developed in England in the early 1900s. In terms of model railway operation, "Gauge '3' " is the largest (standard gauge) scenic railway modelling scale, using a scale of 13.5mm to the foot. The Gauge '3' Society represents this aspect of 2½" gauge railway modelling with both electric and live steam operation. Gauge '3' corresponds to NEM II scale, also known as 'Spur II' in Germany.
The National 2.5" Association continues to support live steam passenger hauling in 2.5" gauge using MES Tracks. They use a 'scale' appropriate to the original prototype modelling both standard and narrow gauge locomotives to run on 2.5" track.
|3/4"||1:16||3 1⁄2 in|
|A worldwide garden railroad scale. Corresponds to NEM III and NMRA 3/4".|
|1"||1:12||4 3⁄4 in|
|North America specific scale corresponding to NMRA 1" scale. 1:12 is one of the most popular backyard railway scales.|
|Used outside North America. Corresponds to NEM V. One of the most popular garden railway scales.|
|1.5"||1:8||7 1⁄4 in|
|Used in North-Eastern USA, Canada and the world outside North America. Corresponds to NEM VII.|
|1.5"||1:8||7 1⁄2 in|
|Used in North America outside of New England and Eastern Canada.|
|1.6"||1:7.5||7 1⁄2 in|
|1.6in=1ft. Used in the USA, often finer-scale. Uses 7.5in gauge.|
Thermal expansion can cause track misalignment, typically referred to as "sun kink". Track must be laid with gaps between adjoining rails to reduce the likelihood of sun kinks.
The table below provides recommended gaps for the ambient temperature when the track is laid. Gaps are indicated in fractions of an inch and temperature is in Fahrenheit. Note that the scale of the rail has no bearing on the size of the gap required.
|Rail Type||Rail Length (inches)||0°F||20°F||40°F||60°F||80°F||100°F||120°F||140°F|
|Aluminum (6063-T5)||120||1/4||3/16||5/32||1/8||3/32||1/16||1/32||no gap|
|Aluminum (6061-T5)||120||1/4||1/5||1/6||1/8||1/10||1/16||1/32||no gap|
|Aluminum (6063-T5)||240||2/5||3/8||5/16||1/4||3/16||1/8||1/16||no gap|
|Aluminum (6061-T5)||240||1/2||5/13||1/3||1/4||1/5||1/8||1/16||no gap|
Date: 08/08/10 08:05
Many thanks to Mike ONeill of Parker, CO for providing some general info on Live Steam track gauges. In the United States and Canada, no one could ever come together and "standardize" on what certain scale gauges should really be, which was unfortunate. Some examples: The standard gauges as adopted by the NMRA years ago for the small live steam railroads are--- 2 1/2 inch (1/2" scale); 3 1/2 inch (3/4" scale), and 4 3/4 inch (1" scale)... In the UK and Canada, 5 inch gauge represents 1" scale...
In the Western U.S. the gauge for 1 1/2" scale is 7 1/2 inch gauge. In the Eastern U.S. the gauge for this same scale is 7 1/4 inches. The same in Canada. Neither gauge is truly correct for the scale involved. For the absolute "purist", the gauge for 1 1/2 inch scale works out to 7 1/16 inches.
This is really a shame because Live Steamers in different parts of the country are "restricted" on whose tracks they can visit and run on. Many years ago, one of the older GGLS members in Oakland, CA built an absolute stunning model of a STEAM locomotive as well as a Steeple-cab locomotive that drew power from either Overhead wire or outside 3rd rail (a 'la SN) and a large beautifully constructed wood caboose. His name was Louis Lawrence and he resided in West Oakland. However. he could ONLY operate his beautiful creations in his own backyard. Why ?? Because for some strange reason he built them with a track gauge of 6 3/8 inches.
The track gauge on Erich Thomsen's "Redwood Valley Railroad" was originally 12 inches before he enlarged it to the current 15 inches.
Anyway, even with early-day intervention by some of the IBLS secretaries, the gauge drama still lingers on. If you are a Live Steam hobbyist, you RUN where you can.
- KEN SHATTOCK
- North American Region
- International Brotherhood of Live Steamers
Model Rail Types
This is a survey of historic and existing rail form factors and their suppliers. If you have data to contribute to this survey please contact Daris Nevil.
- Buddy-L Rail
- For 3/4" scale - 5/8" high - steel, rolled by Bethlehem Steel Co, mates well with Little Engines 5/8" aluminum rail
- Cannonball Rail
- For 1-1/2" scale - "Standard" - 1" high, 7/16" wide head, 1/8" wide web, 3/4" wide foot, length 10', aluminum
- For 1-1/2" scale - "West Coast" - 1" high, 1/2" wide head, 15/16" wide foot, length 10', aluminum
- Culp Rail
- Peter Nuskey, a machinist in Pennsylvania, has been offering Culp Rail (a 1/8 scale aluminum model of Pennsylvania Railroad’s 115lb steel rail) for over 40 years, as of 2012.
- 1-1/2″ scale rail 0.825″ high – 10′ lengths – 6061T6 Aluminum
- 3/4″ scal rail 0.625″ high – 10′ lengths
- LGB rail 0.335″ high – 10′ lengths
- Friends "Yankee Shop" Rail
- For 3/4" scale and 5" scale - 5/8" high - 10' lengths - aluminum
- Groovy Track
- Little Engines
- For 3/4" scale - 5/8" high - aluminum
- L S Rail
- Aluminum 6063-T5, 1.5 Scale LS Rail, 10′ lengths
- Live Steam Locomotives
- 1" high by 1/2" wide, 15/16" foot - aluminum
- Real Trains
- For 1" scale - 0.500" high, 0.234" wide head, 0.457" wide foot - 6061T6 Aluminum
- For 1-1/2" scale - 0.891" high, 0.369" wide head, 0.750" wide foot - 6061T6 Aluminum
- For 3" scale - 1.500" high, 0.600" wide head, 1.200" wide foot - 6061T6 Aluminum
- RMI Railworks
- For 1-1/2" scale - 1" high - 6061T6 aluminum and steel
- West Coast
- 1" high, 1/2" wide head, 15/16" wide foot
- George Pruitt's "Groovy Rail"
- Does not require fasteners
- Conical Tool Company
- 0.634 high, 5/16" wide head, 3/8" wide foot
- Railroad Track Maintenance and Saftey Standards - DOD 2008 (PDF)
- Maintenance of Trackage, DOD 1980 (PDF)
- Mill Creek Central RR Track Building & Track Laying Standards
- SCLS Frog Standards
- Eagle Point RR Track Work
- Building A Turnout
From Large-scale Model Railroading, page 52:
- On curves, there is more resistance or drag to the train. For this reason, grades should be reduced when a curve is involed. Using prototype figures as a guideline, we find that our grades should be reduced as follows:
- 1/2 percent on a 125 foot radius
- 3/4 percent on a 75 foot radius
- 1 percent on a 60 foot radius
- 1-1/4 percent on a 50 foot radius
- 1-1/2 percent on a 40 foot radius
See Elevated Track.
- "Mini-Rail News - Track Standards", Lewis Soibelman, Live Steam Magazine, Mar 1991
- "Track", Wikipedia
- "Rail Profile", Wikipedia

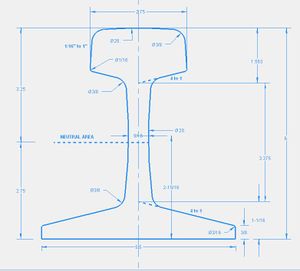

- Rail Specifications, American Society of Civil Engineers (A.S.C.E.)
- ASCE Rail Information
- Swanton Pacific Railroad Track Manual
- Chaski.org, thread on 3/4" scale rail
- Chaski.org, info on Peter Nuskey
- "Mill Brook Railroad", info on Culp Rail/Peter Nuskey
- "Live Steam by Father Finelli", info on Culp Rail and L S Rail
- Mini-Rail Corporation
- "Ridable miniature railway", Wikipedia, provides an extensive list of gauges from around the world
- Swanton Pacific Railroad Track Manual
- "Assembling Track Panels", Calvert Centrail RR
- Dimensions for 8 and 12 pound rail, DiscoverLiveSteam.com
- "Typical rail loading weights", Chaski.org
- "Radius of curve", Chaski.org
- Specifications and Drawings for rail, 12-lb/yd and up, Harmer Steel Co
- "Rail Gap Standards", Arthur W. Reiter, Modeltec, January 1994
