486 Gets A New Oil Tank

From IBLS
Jump to navigation Jump to search


by Daris A Nevil

No 486 was converted from wood to oil early in its life. The original oil tank was very simple, consisting of a 1 gallon tin gas can with a 1/8 NPT fitting soldered to the bottom front of the can. Not a very pretty setup, but it worked. That is until the soldered fitting came loose.

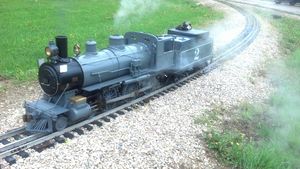

A search began for a better solution. Some prototype locomotives that were converted from coal to oil used tee-style oil tanks. I found an image of an Allen 10-Wheeler on Chaski.org with just such a tank (see photo below). This is the direction I decided to go.

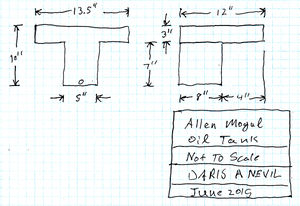

I designed the tank from scratch by taking measurements of the tender where the oil tank would reside. I used the free CAD software offered by eMachineShop to draw the sides of the container. To make sure the sides all fit together as planned a small model was printed on card stock, cut out and taped together. The resulting model, shown below, proved the design was sound.

eMachineShop also offers fabrication services. Five sets of tanks were laser cut from 16 gauge 1018 CRS.

The fill neck was turned from 3/4 inch black iron pipe. The fuel cap was turned from a pipe cap. A small 3/32 hole was drilled in the top to allow air into the tank as the fuel drains out. A small splash guard was fabricated from sheet brass and inserted into the interior of the cap.

A fuel drain fitting was turned from 3/4 inch CRS, threaded for 1/8 inch NPT.

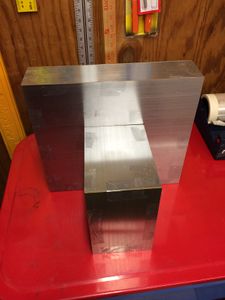

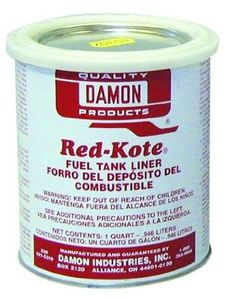

My friend, Stephen Grief, professionally welded the tank together. The interior was sealed with Red Kote Fuel Tank Liner. This prevents rust from forming on the interior, and assures any pinholes in the welded seams are sealed.

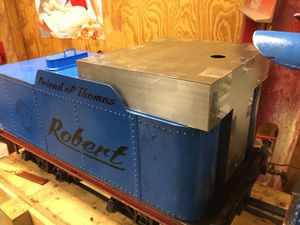

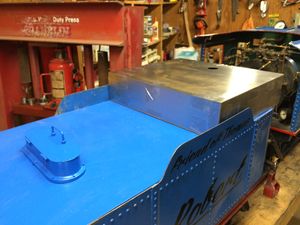

The new tank has been a smashing success. The fuel capacity of the tank is a whopping 3 U.S. gallons, allowing much longer run times between re-fills.

The CAD drawing for the tank sides are provided in the Files section below should you wish to build one for your Allen locomotive.
